Memmert CTC256 Environmental Test Chamber with Humidity with 1 Grid 256L

Code: cha4002 N1-1

Rapid, precise and energy-saving temperature changes in the range from -42 to +190°C, along with fast humidity recovery times, make the TTC temperature test chamber and the CTC climatic test c...


read more

Your Price
£26,237.00 EACH
£31,484.40 inc. VAT

3 Year Warranty
Service Centre
Calibration Service

Rapid, precise and energy-saving temperature changes in the range from -42 to +190°C, along with fast humidity recovery times, make the TTC temperature test chamber and the CTC climatic test chamber with humidity unit a perfect duo.

  • State-of-the-art control technology
  • Extremely powerful due to the optimally coordinated heating and cooling technology
  • Specifically suited for tests in accordance with IEC 60068
  • High-tech insulation system for permanent insulation capacity and energy efficiency
  • Temperature change rate in heating operation according to IEC 60068-3-5: 10K/min (-40 to +180°C; measured at an ambient temperature of 22°C)
  • Temperature change rate in cooling operation according to IEC 60068-3-5: 3K/min (from +180 to -40°C; measured at an ambient temperature of 22°C)
  • Refrigerant R449A, significantly more climate-friendly than R404A

CTC only:

  • Electronically controlled active humidification and dehumidification from 10 to 98% rh
  • Telescopic slide for 2 x 10L tanks for distilled water as fresh water and 2 x 10L as condensate collector
  • Automatic water tank changer-over with alarm for continuous operation
  • Works calibration certificate at -20°C and +160°C and at +30°C and 60% rh

CodeModelTemp Range, °CHumidity, % rhInt Dims, w x d x h, mmExt Dims, w x d x h, mm*
CHA4002CTC25610 to 9510 to 98640 x 597 x 670898 x 1100 x 1730
CHA4004TTC256-42 to 190640 x 597 x 670898 x 1100 x 1730
* External width plus 20mm for silicone stopper and 5mm for interface, external depth plus 50mm for door handle
Code
Description
Unit Size
List Price
Qty
CHA4004
Unit:EACH
List Price: £22,801.00
Source:List Price
ADD
Code
Description
Unit Size
List Price
Qty

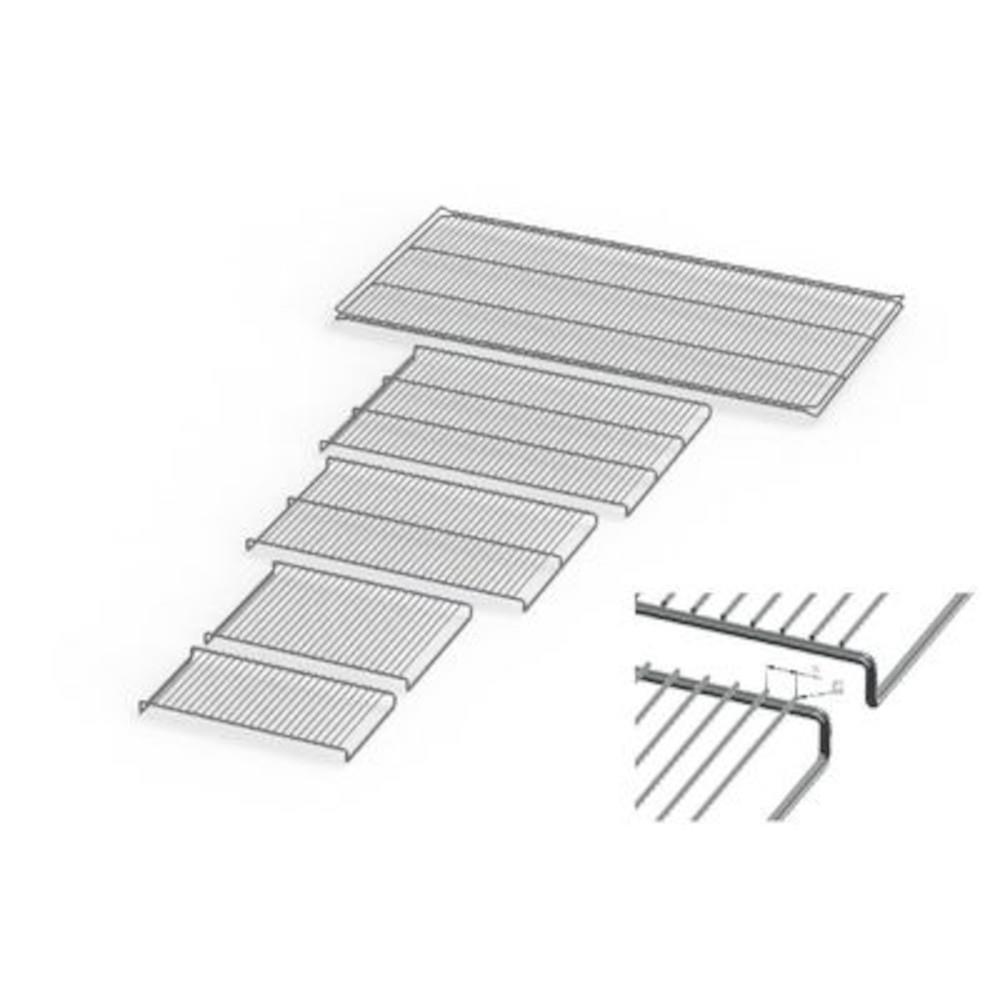

CHA4006
Unit:EACH
List Price: £591.00
Source:List Price
ADD
Capacity, L256
Dims, w x d x h, mm898 x 1100 x 1730
Int Dims, w x d x h, mm640 x 597 x 670
Temp Range, °C10 to 95
Weight, kg337
This product has met the following criteria:
