Accuris SmartReader MultiMode Plate Reader

Code: mic1602 D2-0

The Accuris SmartReader™ Multimode is an advanced microplate reader designed to meet the growing needs of advanced life science labs. Equipped with a full suite of high-performance optical sy...


read more

Your Price
£28,938.00 EACH
£34,725.60 inc. VAT

The Accuris SmartReader™ Multimode is an advanced microplate reader designed to meet the growing needs of advanced life science labs. Equipped with a full suite of high-performance optical systems, the SmartReader™ Multimode is your all-in-one solution for absorbance, fluorescence and luminescence applications.

The SmartReader™ Multimode quickly processes assays in standard 96 well plates and can also accept 6, 12, 24, 48 and 384 well plates. Programming and operation are managed from the instrument’s large colour touch screen and no external computer or software is required. Optional PC software is available for easy control and data handling via a Windows™ PC. The friendly and intuitive interface guides the user through various options for assay set up and processing. The instrument features a built-in plate shaker with linear, orbital, and double-orbital shaking modes, and an incubator that can perform top heating from ambient +4 to 45°C. Top heating creates a temperature gradient to prevent condensation when lids are used on the microplates. Upon start-up, the SmartReader™ Multimode performs a self-diagnostic test, followed by an automatic calibration of the entire system, ensuring consistent results across a wide range of assays.

  • Intuitive, 10-inch colour touch screen
  • Stand-alone system with optional PC software (FDA CFR Part 11)
  • Monochromator-based system for UV through visible absorbance
  • Filter module system for fluorescence assays
  • Advanced PMT detector for luminescence assays
  • Optional automatic injection modules for flash luminescence
  • Compatible for full range of common microplates

Measurement TechnologiesAbsorbance, fluorescence, luminescence
Plate Formats6- to 384-well plates
ShakingLinear (4.7Hz, 7.0Hz, 13.5Hz), orbital and double orbital (240 - 1200rpm)
Incubation RangeRT +4 to 45°C
Display10.0 inch touchscreen
Communication Ports2 USB A type ports / 1 USB B type port; 1 ethernet port; RS232 interface
Dimensions (w x d x h)42.0 x 55.0 x 38.6cm
Weight33kg
Absorbance
Light SourceHigh energy xenon flash lamp
DetectorPhotodiode
Wavelength Accuracy2nm
Wavelength Repeatability0.2nm
Bandwidth (FWHM)﹥2.5nm
Wavelength Range200 - 1000nm, 1nm steps
Absorbance0.0 - 4.0 OD
Resolution0.0001 OD
Accuracy96-precision mode: ±(1.0% + 0.003 Abs) @ (0.0 - 2.0 Abs]; ±2.0% @ (2.0 - 3.0 Abs)
RepeatabilityCV ﹤1.0% or SD ﹤0.003 Fast (0.0 - 3.0 Abs); CV ﹤0.5% or SD ﹤0.003 Accurate (0.0 - 3.0 Abs)
Stray Light0.1% @ 220nm
LinearityR2 ﹥0.999 @ [0.0 - 3.0Abs]
Measurement Speed﹤15 seconds
Fluorescence
Reading ModeTop reading
Excitation Light SourceHigh energy xenon flash lamp
DetectorPhoto Multiplier Tube (PMT)
Detection Limit≤1pM
Wavelength RangeEX: 200 - 1000nm; EM: 270 - 850nm
Included Filter Cartridges(E /EM): 470/525nm ; 523/564nm ; 624/692nm
Linear Dynamic Range6 logs
Luminescence
DetectorPhoto Multiplier Tube (PMT)
Detection Limit15 amol/well
Linear Dynamic Range6 logs
Code
Description
Unit Size
List Price
Qty

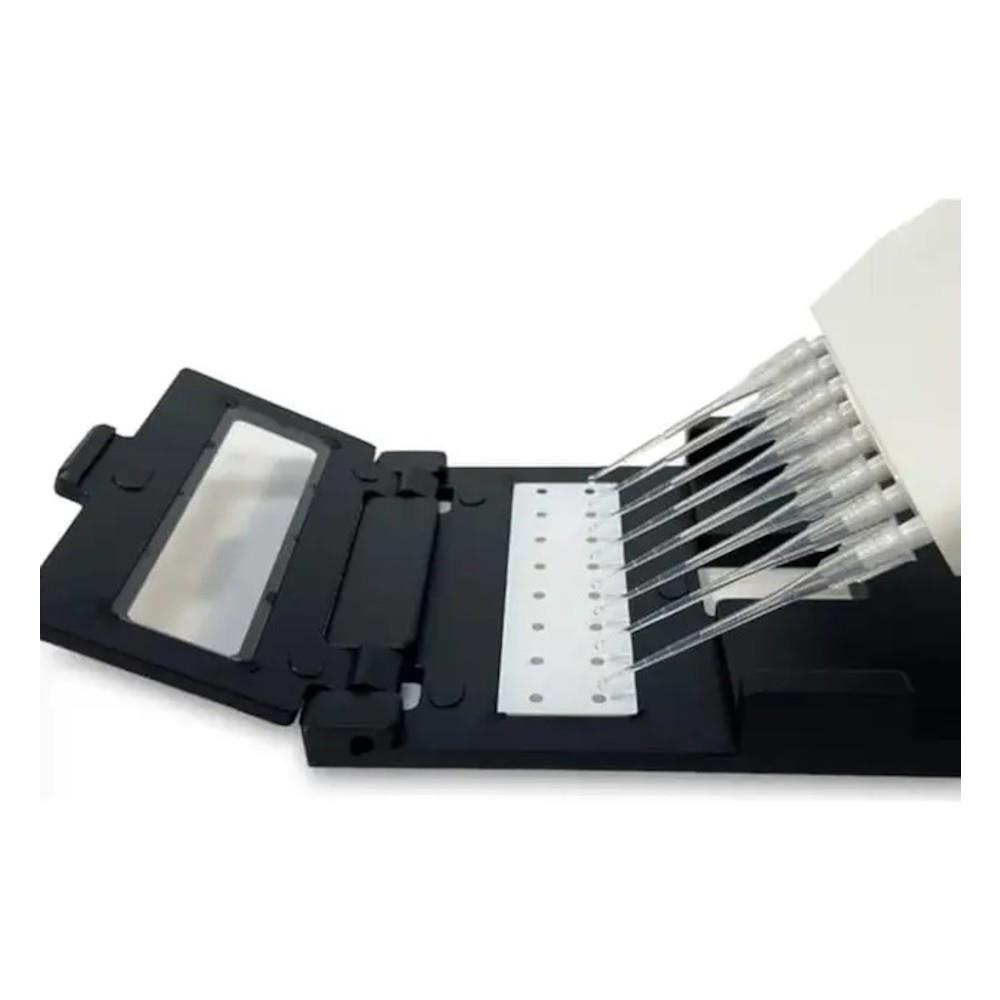

MIC1009
Unit:EACH
List Price: £3,488.00
Source:List Price
ADD

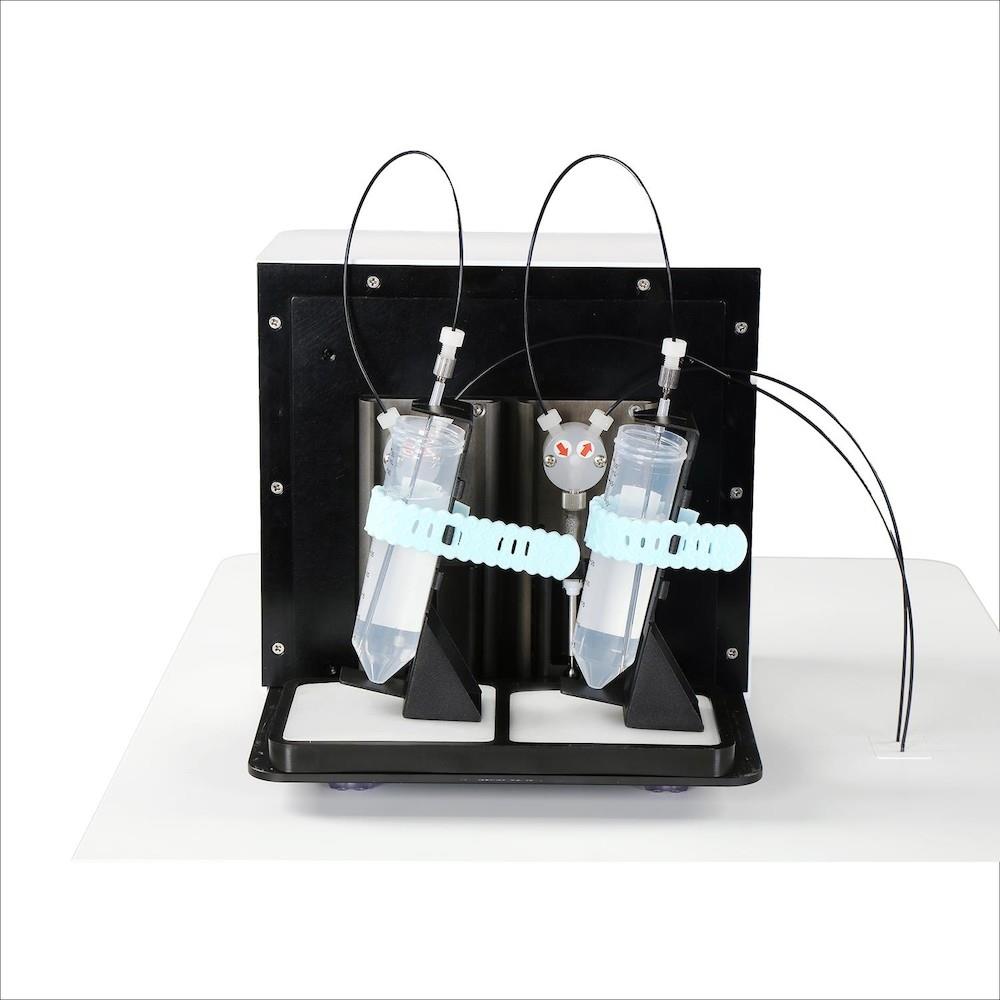

MIC1604
Unit:EACH
List Price: £11,869.00
Source:List Price
ADD
MIC1606
Unit:EACH
List Price: £444.00
Source:List Price
ADD

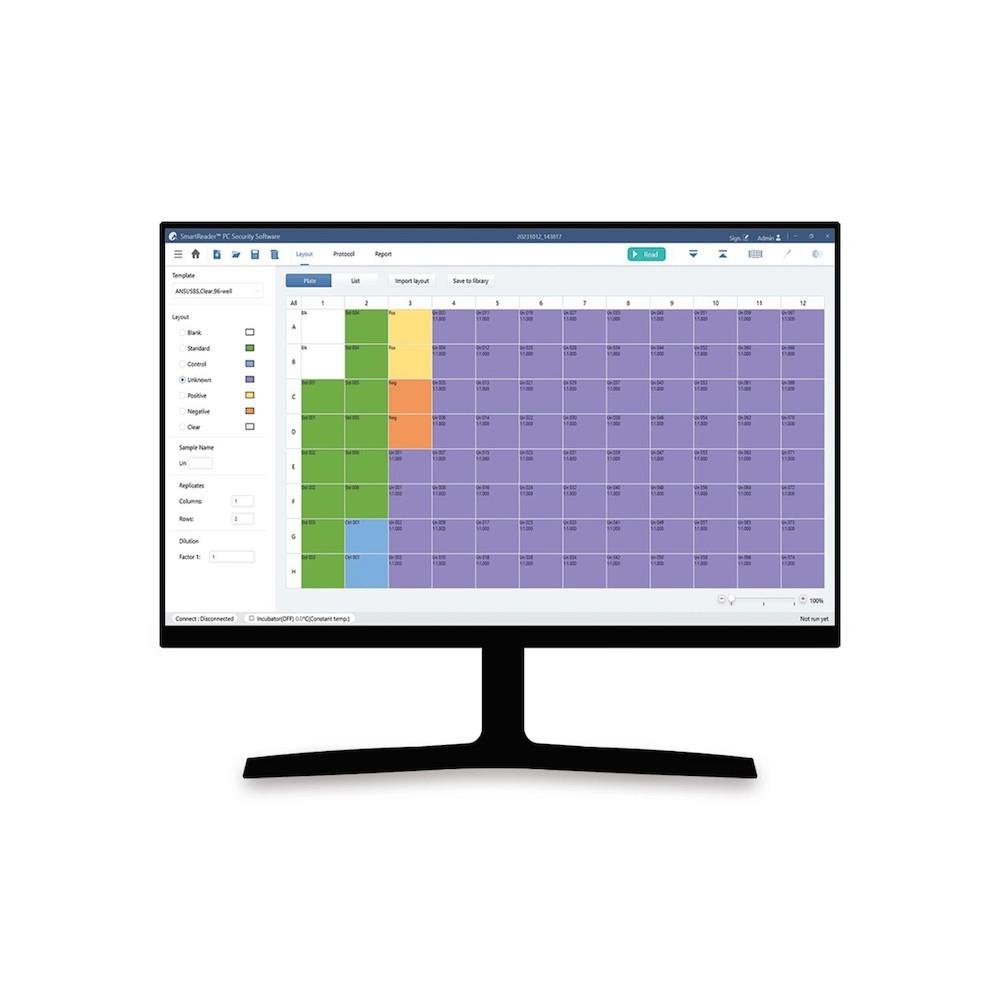

MIC1608
Unit:EACH
List Price: £2,110.00
Source:List Price
ADD
This product has met the following criteria:
